Tsim qauv rau kev siv tau yooj ywm
Ib qho ntawm cov muaj nqis tshaj plaws ntawm FDG3500 yog nws cov ntau yam tsim qauv. Tsis tsuas yog nws tuaj yeem ua tau raws li ib txwm ua rau kev ua cov ntaub ntawv-cov flange sealing chaw kom ua tiav chav sib tsoo kom ua tiav qhov machision-theem machining. Qhov tsim qauv zoo tshaj plaws txhim kho lub tshuab hloov tau thiab raug, tso cai rau nws los lis ntau yam khoom sib xyaw, los ntawm cov qauv kev hloov pauv rau cov chaw flaleing flangaces.
Siab Ntsuas Lub Peev Rau Precision Ua
FDG3500 yog nruab nrog txoj haujlwm hnyav-lub luag haujlwm kom ntseeg tau tias muaj peev xwm ua haujlwm ntev, muaj peev xwm ua haujlwm tsis muaj kev cuam tshuam machining precision. Txawm hais tias nyob rau hauv ib puag ncig ntawm thaj chaw ib puag ncig lossis cov haujlwm siab ua kom zoo nkauj, FDG3500 muab cov kev ua tau zoo txuas ntxiv, ua tau ruaj khov rau flange seural kev ua.
Peb txoj kev teeb tsa tuaj yeem raug xaiv
Tib qho taw tes Machining xwb, ntsej muag Milling tsuas yog ob qho tib si taw tes machining thiab ntsej muag milling.
Tsis Siv Neeg Pub Ua Haujlwm Rau Kev Ua Haujlwm Zoo
FDG3500 Nta ob qho tib si radial thiab axial tuaj pub noj ua haujlwm, tso cai rau kev pub ceev yuav tau hloov kho raws li kev ua haujlwm. Qhov kev tsim qauv no tsis yog txo cov kev ris nra ntawm cov neeg ua haujlwm tab sis kuj tseem ua haujlwm, kom txhua txoj kev ua haujlwm flange tau ua tiav.
Hide Daim Ntawv Thov Ntau Yam
Nrog rau lub tshuab machining txij 1150mm rau 3500mm, FDG3500 yog qhov haum rau ntau hom flange thiab hom, ua rau nws tshwj xeeb tshaj yog rau kev ua haujlwm loj thiab nruab nrab. Los ntawm xaiv cov txheej txheem sab nraud mounting Cheebtsam, cov neeg siv tuaj yeem nthuav dav lub tshuab kev thov ntau yam, kev sib ntsib ntau yam machining. Txawm hais tias maj nrawm rau kev kho lossis tiv thaiv kev tiv thaiv, FDG3500 muaj cov tshuaj zoo tshaj plaws.
Kev hloov pauv tsav hloov kom tau raws li cov kev xav tau sib txawv
FDG3500 muaj ob qho tib si tsav tsheb thiab pneumatic tsav xaiv, tso cai rau cov neeg siv xaiv cov tsav tsheb uas tsim nyog tshaj plaws nyob rau ntawm thaj chaw thiab kev ua haujlwm. Qhov kev hloov pauv tau zoo heev rau lub tshuab hloov pauv rau ntau qhov chaw ua haujlwm, txawm hais tias nyob rau hauv cov chaw ua haujlwm lossis xav tau cov ntawv thov kom nruj.
Tag

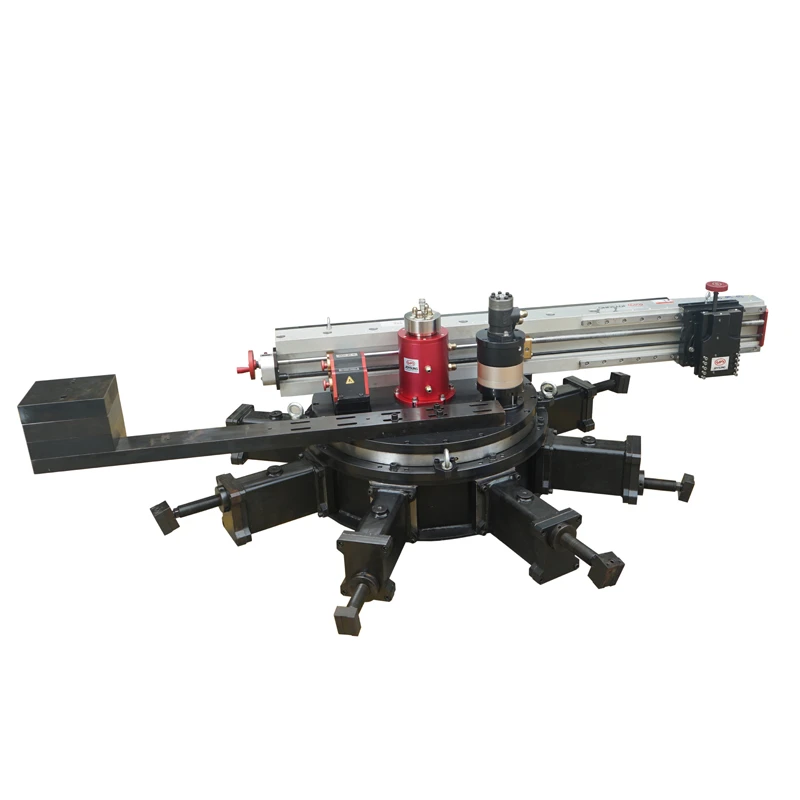

FDG3500 Portable Flange Facer yog ib qho kev ua flange ua cov cuab yeej uas sib xyaw ua ke, cov khoom muaj zog ntau, thiab siv lub tshuab hluav taws xob zoo. Nws qhov yooj thiab ntau cov kev siv ua nws cov khoom siv tsis tseem ceeb hauv ntau cov khoom lag luam, muab cov neeg siv khoom zoo thiab muaj txiaj ntsig flange sealing deg daws. Yog tias koj tab tom nrhiav lub tshuab ua flange uas tuaj yeem ua haujlwm ntawm cov haujlwm ua haujlwm nrog thiab cov kev xav tau FDG3500 yog qhov kev xaiv uas zoo tshaj plaws.
Kev Nthuav dav
|
Ntsib cov cheeb tsam |
{{{{0}} hli (45-138. 0 ") |
|
Daim ID Clamp |
{{{{0}} hli (45-120. 0 ") |
|
Ib qho taw tes Machining: |
|
|
Cuab Yeej Tseem Ceeb |
1 {0 2 hli (4.0 ") |
|
Radial Slide stroke |
520mm (20.5 ") |
|
Cov Cuab Yeej Ncua Tig Swivel Lub |
+ / - 30⁰ |
|
R.P.M |
0-11 |
|
PACE MILLING |
|
|
Ntxaiv lub taub hau stroke |
25 0 hli (10.0 ") |
|
Ntxaiv taub hau taper |
NT40 |
|
Kev Sib Hloov Tes Rpm |
0-6 |
|
Ntxaiv lub taub hau swb mob stroke |
520mm (20.5 ") |
|
FACE ZEB (TXIV) |
120mm |
|
Ntxaiv Head RPM |
0-305 |
|
Tsav Tsheb Hluav Taws Xob (Txuj Ci) |
2 tso zis, 30hp (22kW) |
